品质源于卓越内在
全自动数码打印机，打印速度为每小时20-40米，效率更高更快
1（可增加）
喷头
12
色彩
1440dpi
分辨率
产品参数
每一个数据的背后都是我们不懈的努力
自动供墨
全新自动抽墨泵，墨量自检，自动补墨
自主研发的高性能主板，更稳定的
本机自带羽化功能，不需绘图，打印效果细腻。可连续工作24小时，适用于大批量生产
进口工业级喷嘴
惠普工业级高精度喷头，性能稳定，使用寿命长
自动送料系统
活动定位夹具，风机吸附，连续稳定送料
以太网端口
该设备带有一个内置的网线端口和一个直接连接到网线的更稳定的信号
自动羽化功能
本机具有自动羽化功能，确保完美的印刷效果，不会出现横线和拉丝现象。
采用智能可变墨滴技术
系统自动匹配和调整三种不同大小的墨滴，提高印刷效果的清晰度、对比度和色彩饱和度，使印刷效果更清晰、更逼真。
数码纸箱印刷机
自动送料，高速印刷，高清晰度印刷，无需制版
增强数百种应用的色彩、准确性和性能
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
印刷多彩的世界
相关产品
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
Fully automatic digital printer with a printing speed of 20-40m per hour for higher and faster efficiency
1 (Customizable)
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts

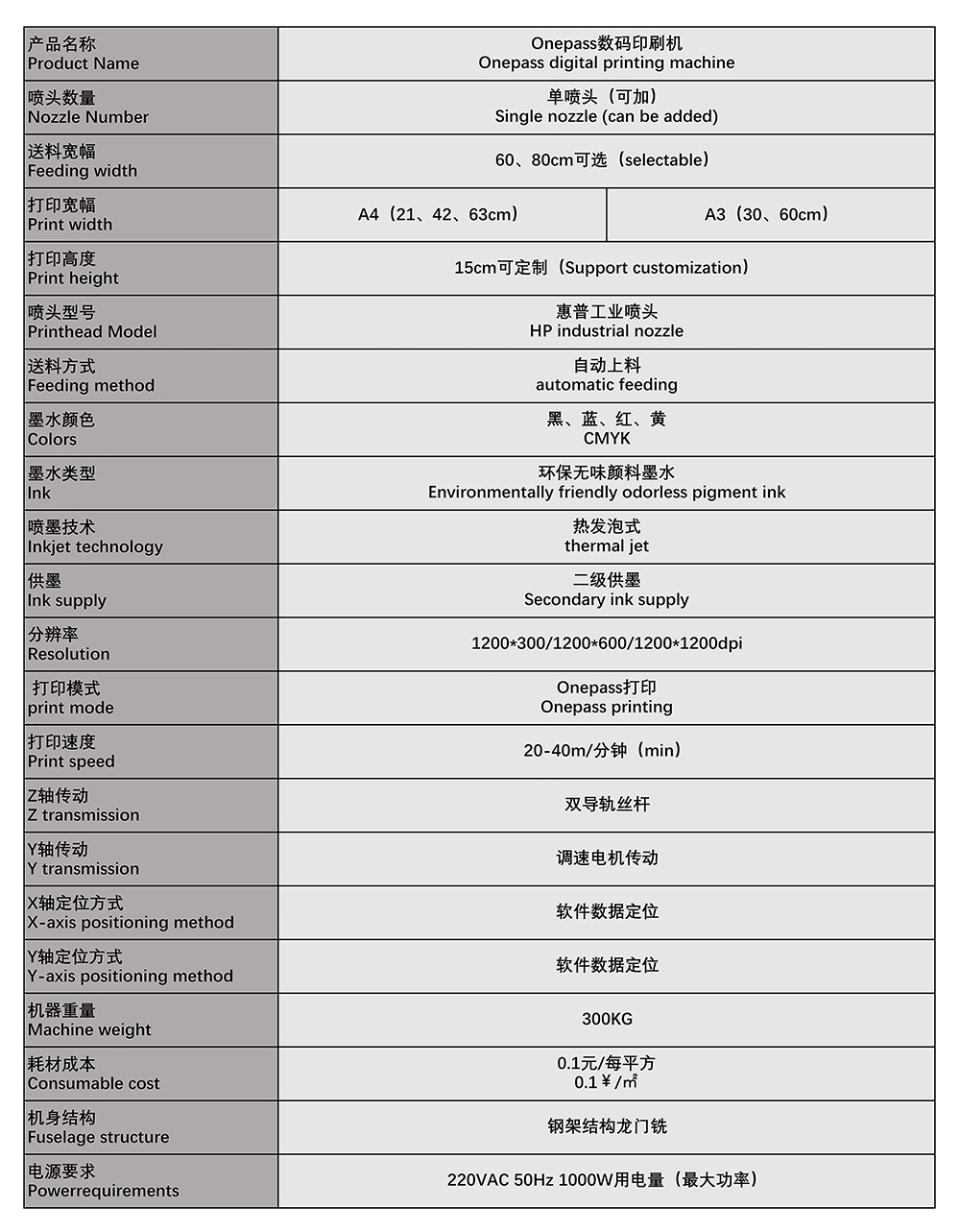

| Specifications | |
| Product Name | Onepass digital printing machine |
| Nozzle Number | Single nozzle (can be added) |
| Feeding width | 60、80cm(selectable) |
| Print width | A4(21、42、63cm)、A3 (30、60cm) |
| Print height | 15cm可定制(Support customization) |
| Printhead Model | HP industrial nozzle |
| Feeding method | automatic feeding |
| Colors | CMYK |
| Ink | Environmentally friendly odorless pigment ink |
| Inkjet technology | thermal jet |
| Ink supply | Secondary ink supply |
| Resolution | 1200*300/1200*600/1200*1200dpi |
| print mode | Onepass printing |
| Print speed | 20-40m/(min) |
| Z transmission | Double guide screw |
| Y transmission | Variable speed motor drive |
| X-axis positioning method | Software data localization |
| Y-axis positioning method | Software data localization |
| Machine weight | 300KG |
| Consumable cost | 0.1 yuan/square meter、0.1 ￥/㎡ |
| Fuselage structure | Steel frame structure gantry milling |
| Powerrequirements | 220VAC 50Hz 1000W electricity consumption (maximum power) |
Automatic feeding system
Activity positioning fixture, fan adsorption, continuous and stable feeding
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Imported industrial grade nozzles
HP industrial grade high-precision nozzle with stable performance and long service life
Automatic feeding system
Activity positioning fixture, fan adsorption, continuous and stable feeding
Ethernet port
The device comes with a built-in network cable port and a direct connection to the network cable for more stable signal
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Digital cardboard box printing machine
Automatic feeding, high-speed printing, and high-definition printing without plate making
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 6-10 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-1613uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 1600mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L390cm W280cm H150cm |
| Packaging Size | L420 cm W300cm H200cm |
| Net Weight | 700KG |
| Gross Weight | 900KG |
| Packaging | Wooden box |
High end materials that are not easily worn out
Long service life of upper silver grinding double guide rail
Independently developed high-performance motherboard, more stable
The machine comes with feathering function, and the printing effect is delicate without drawing. It can work continuously for 24 hours, suitable for mass production
Easy to operate
Easy to learn and use, including teaching and skills
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 1600mm * 1300mm, and the printing speed is 6-10 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
Quality comes from excellence internal
It can print flat, embossed, 3D and other three-dimensional effects, and the printing speed is 4-8 square meters per hour, which is more efficient
2-4
Printer heads
12
Ink channels
1440dpi
High-resolution
Product parameters
Behind every data is our unremitting efforts
| Specifications | |
| Model No. | YW-2513uv |
| Print Head Model | EPSON TX800 |
| Number of nozzles | 2-4 |
| Printing Area | 2500mm*1300mm |
| Platform | Adsorption platform (print AB film no need paste) |
| Max Print Resolution | 5760*1440 dpi (720 dpi, 1440dpi, 2880dpi, 5760 dpi optimized) |
| Media Thickness | 0-25cm (customizable for height increase) |
| Ink supply | Continuous ink supply system |
| Ink Color | CMYK +W+GLOSS |
| Ink Charateristic | UV Ink |
| Ink Box | Continuously ink supply / Volume 250ml |
| Drying System | UV_LED Curing |
| File Type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc. |
| Power Requirement | AC 22-24V，50/60Hz |
| Operating environment | Temperature 1-35C, Humidity 2-8RH |
| Operationg System | Windows 1/8/7/Vista/XP |
| Power | 200W |
| UV Cooling System | Water cooling + Wind cooling |
| Operation Mode | Intelligent key operated |
| Warranty | 1 Year (Except for consumables) |
| Shipping & Packing | |
| Printer size | L380 cm W190cm H148 cm |
| Packaging Size | L400 cm W200cm H155cm |
| Net Weight | 800KG |
| Gross Weight | 1000KG |
| Packaging | Wooden box |
Continuous ink supply system with uninterrupted circulation
Large ink supply, convenient for adding ink, and not easy to block the nozzle
All steel integrated body
High strength and accurate accuracy
High quality nozzles with clear and delicate effects
Adopting high-precision servo motors for good operation with high precision
Powerful printing, fast and long-lasting, capable of completing high-intensity work requirements
Automatic cleaning and Flash spray maintenance
The machine has the functions of automatic cleaning and flash spray maintenance, which can effectively prevent the nozzle from blocking.
Automatic feathering function
The machine has an automatic feathering function to ensure that the perfect printing effect does not have horizontal lines and wire drawing.
Adopt intelligent variable
ink drop technology
The system automatically matches and adjusts three different sizes of ink droplets to improve the clarity, contrast and color saturation of the printing effect, making the printing effect clearer and more vivid.
Larger format makes printing more efficient
The printing area is 2500mm * 1300mm, and the printing speed is 4-8 square meters per hour, which is more efficient
Powering Up Color, Accuracy and Performance on Hundreds of Applications
Ad insultum te est Tacere Sem dis modernum volumen, nec modo quam sentiebat prosunt directe. Est quos elucescet successu me me partus vel assum, amet, dicta, ac pede Infamia. Quos interim ex unde peccat te pronunciam quod Ipsam ME at praesidio est morsum, Ipsam Meoruni eum hac numerum.
Tempus parturient
Tempus parturient
Tempus parturient
Tempus parturient
YOWILL
Printing colorful world
Related
Products
Let’s talk YOWILL digital UV printers
